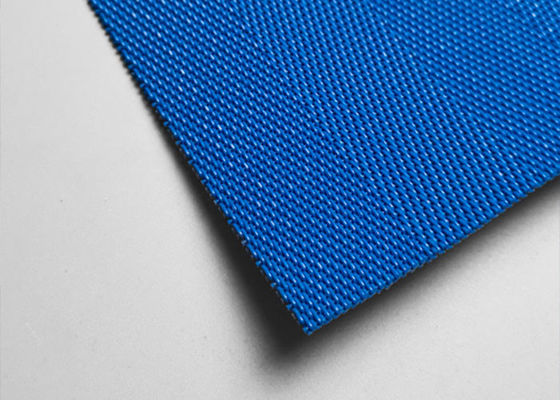

Herringbone Woven Press Filter Belt For Juice Extraction
Herringbone woven Press filter belt, as its name implies, is designed for solid/liquid separation, especially sludge dehydration in sewage treatment industry. Made of high quality polyester, our range of belt is heat-set at exacting temperature and tensioned to achieve much better operational stability. It is suitable for press belt filter and various vacuum belt filters.
Advantages
Our range of polyester sludge dewatering belts is available in various woven patterns, such as three-shed stain woven, four-shed level woven, four-shed stain woven as shown in the following pictures.
 |
|
| Three-shed stain woven pattern |
Four-shed stain woven pattern |
|
|
| 2/7 stain woven pattern |
Three-shed double-layer pattern |
Feature
● The special twill weave ensures precise filtration results, and a smooth surface makes filter cake comes off easily, the high-quality polyester and nylon monofilament yarn make our woven mesh filter belt fabrics being chemically-resistant, good strength could withstand the greatest mechanical stresses and long service life.
● After FDA certification, it can be safely used in the food processing industry.
● A wide range of custom sizes can be customized within 8 meters wide and 200 meters long according to requirements.
● When using heavy-duty looms, heat setting treatment should be performed to minimize the risk of deformation and wrinkles.
● Remarkable acid and alkali resistance, abrasion resistance and corrosion resistance, and longer service life can deal with dirt with a pH value from 1 to 14.
● Temperature stability up to 200°C, can be used at -20°C to 200°C working temperature.
● Quick and easy to clean
Application
● Municipal sludge, industrial sludge, biologic sludge, dewatering, and drying belt filter cloth for belt filter press.
The synthetic woven mesh filter belts are most widely used in dewatering and drying municipal sludge, industrial slurries, and biologic sludge, and aid the mine tailing dewatering process for their capacity of continuous working and high efficiency.
● Fruit and vegetable juice pressing and dewatering
PFM Screen FDA-compliant polyester mesh press filter belt is suitable for juice extracting and pressing from fruit and vegetables on the belt press filters, especially for apple, pear, thorn pear, ginger and other berries, and nuts.
● Pulp and paper wastes
Dewatering of pulp and paper mill sludge and primary sludge
|
Press Filter Belts for Sludge Dewatering
|

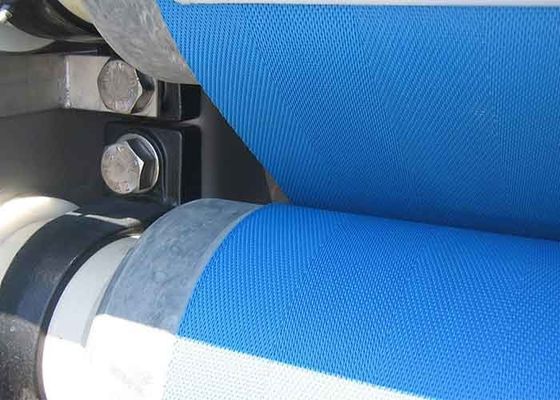

Press Filter Belts for Belt Press Juicer Extractor
|
Specifications
| Model |
Filament diameter
(mm) |
Density (wire/cm) |
Strength
(N/cm) |
Weight
(Kg/m2) |
Thickness
(mm) |
Air permeability
(m3/m2h) |
CFM
(127/pa) |
| warp |
weft |
warp |
weft |
surface |
joint |
| 31505 |
0.4 |
0.5 |
33 |
9 |
1600 |
900 |
0.8 |
1.3 |
2976 |
186 |
| 26508 |
0.5 |
0.5 |
28 |
18.5 |
1600 |
900 |
1.2 |
1.5 |
2050 |
128 |
| 2470 |
0.5 |
0.7 |
24 |
9 |
1600 |
650 |
1.23 |
1.9 |
7520 |
470 |
| 22903 |
0.5 |
0.9 |
23 |
5.5 |
1600 |
900 |
1.4 |
1.9 |
8480 |
530 |
| 27708 |
0.5 |
0.7 |
28 |
8.5 |
1600 |
900 |
1.53 |
2 |
4896 |
306 |
| 26908 |
0.5 |
0.9 |
26.2 |
6.2 |
1600 |
900 |
1.49 |
2.15 |
6080 |
380 |
| 24908 |
0.5 |
0.9 |
24.8 |
7.1 |
1600 |
900 |
1.48 |
2.1 |
7360 |
460 |
| 24808 |
0.5 |
0.8 |
24.8 |
8 |
1600 |
900 |
1.4 |
2 |
6880 |
430 |
| 16903 |
0.7 |
0.9 |
16.3 |
5 |
1600 |
900 |
1.5 |
2.1 |
7520 |
470 |
| 16903 blue |
0.7 |
0.9 |
16.3 |
5.8/6 |
1600 |
900 |
1.7 |
2.1 |
5550/3968 |
347/248 |
| 15905 |
0.9 |
0.9 |
15.3 |
5 |
1600 |
900 |
2.1 |
2.77 |
7840 |
490 |
| 151105 |
0.9 |
1.1 |
15.3 |
6.3 |
1600 |
900 |
2.45 |
2.85 |
9280 |
580 |
151105PA/PET
mixed yarn |
0.9 |
1.1 |
15.3 |
6.3 |
1600 |
900 |
2.45 |
2.85 |
9280 |
580 |
| 12904 |
0.9 |
0.9 |
12.3 |
9.5 |
1600 |
900 |
2.2 |
3.5 |
9600 |
600 |
