Expanded Metal Machine Guard Fencing--Protect the personal safety of operators

Expanded Metal Machine Guard Fencing – Safety Barrier Between Workers and Machines

Safety is always a great concern in production, especially in the manufacturing industry. The equipment operation not only brings us economic benefits, but also put operators in a dangerous workplace. So, machine protection becomes very important.

Expanded Metal Machine Guard Fencing are mainly used in machine perimeter protection and partial protection. The guard surface is generally electrostatic powder coated with alarming color, such as yellow and orange, aiming to reduce the occurrence of production accidents and ensure the personal safety of operators. All our expanded metal machine guards comply with OSHA (Occupational Safety and Health Administration) 1910.212 general requirements.


Expanded Metal Machine Guard Fencing Feature

• Economical & eco-friendly. Made of solid steel plate after slitting and stretching, no material is wasted during the production.
• Visibility. Uniform openings allow the free passage of air and light and can observe the equipment operation directly without removing the machine guards.
• Safety. Rigid structure and different opening size can effectively prevent fingers or body part from coming into contact with hazardous parts and protect the personal safety of operators.
• Durability. Powder coated surface offers enhanced corrosion resistance.
• Formability. It can be cut, bent and welded to meet the safety protection requirements of different machines.

Specification

• Material: carbon steel, stainless steel
• Hole pattern: diamond
• Opening size (mm): 5 × 23, 8 × 24, 10 × 32
• Thickness: 2 mm – 4 mm

Finish: electrostatic powder coated


Expanded Metal Machine Guard Fencing Application

It is generally installed along the machines are prone to causing injuries, such as cutting machines, milling machines, forming rollers and calenders, to protect workers from chippings, flying chips or metal sparks generated during the machine operating. It usually consists of multiple pieces of expanded metal with frames, which is strong and easy to install and maintain.

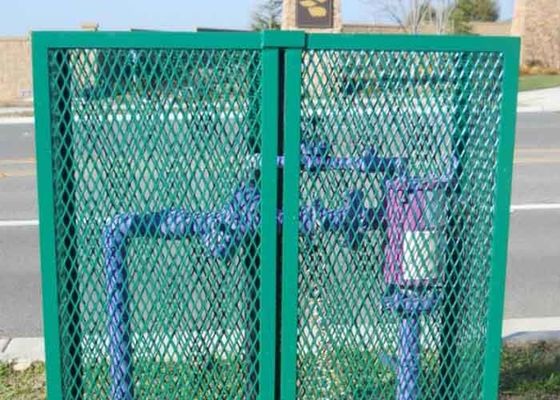

Expanded Metal Machine Guard for outdoor mechanical protection

Expanded metal guard for drilling equipment protective cover

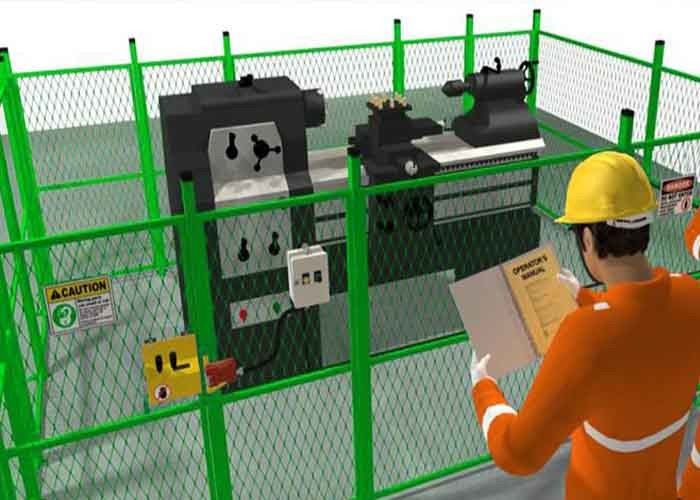

Expanded metal guard for machine protective cover

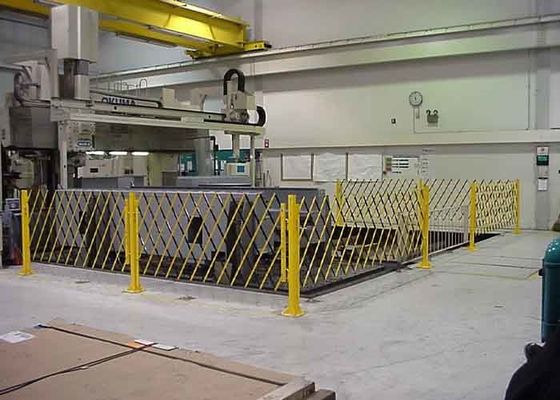

Expanded metal perimeter guards for out equipment protection
