Sintered Stainless Steel Filter Disc For Liquid Filter

Sintered Stainless Steel Filter Disc For Liquid Filter

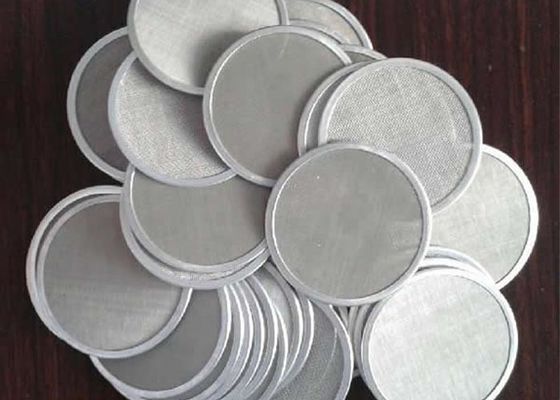

Sintered mesh filter disc is single or multiple layers of diffusion-bonded woven wire mesh laminates. Through precision sintering and calendaring, filter disc is equipped with several important properties for better filtration. The prominent features will be mechanical strength, stable mesh aperture and low-pressure drop. Sintered filter disc is designed to provide economical filtration media to critical areas such as hydraulic, valve, pump, servo and other applications.

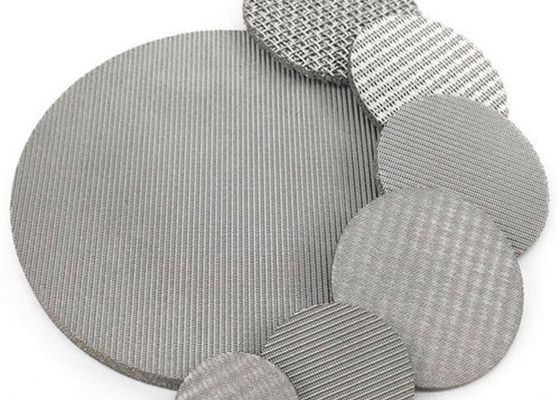

Our R&D team has been always developing new filtration media model to the market to better solve customers' filtration troubles. Apart from common flat filter discs, pleated filter discs are getting popular. Pleated sintered mesh filter discs provides much more filtration area than typical flat filter discs. Hence, for high viscosity liquid filtration, pleated filter disc is the exact choice. Besides, customized filter discs are welcome.

Product specification:

• Item: sintered mesh filter disc.
• Material: stainless steel 316 & 304.
• Diameter: 100 to 300 mm (or as required).
• Micron rating: 2 to 100.
• Layer: single to multiple.
• Construction: simple flat & pleated.
• Shape: round, square, oval, rectangle or as required.

Features & benefits:

• Economical option.
• Improve on-stream time.
• Uniform aperture.
• High temperature & corrosion resistance.
• Cleanable & reusable.
• Micron-rating aperture.
• Low pressure drop.
• Compatible with most gases & liquids.

Applications:

• Gas turbine engines.
• Pump.
• Hydraulic filtration.
• Fuel & air injection.
• Fire control equipment.
