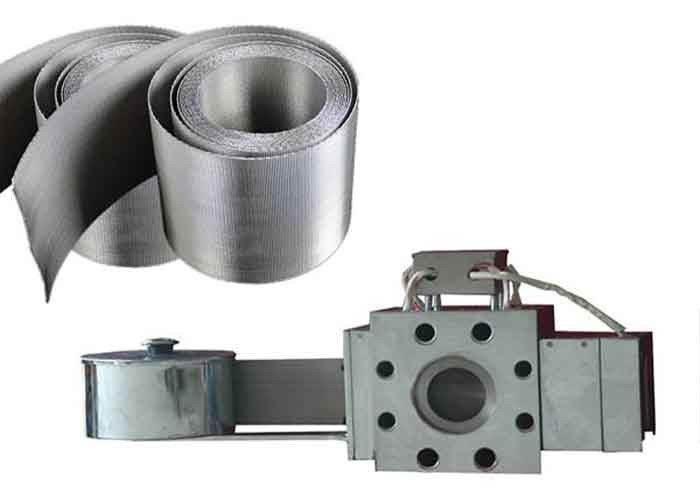

Filter Belts for Continuous Screen Changers

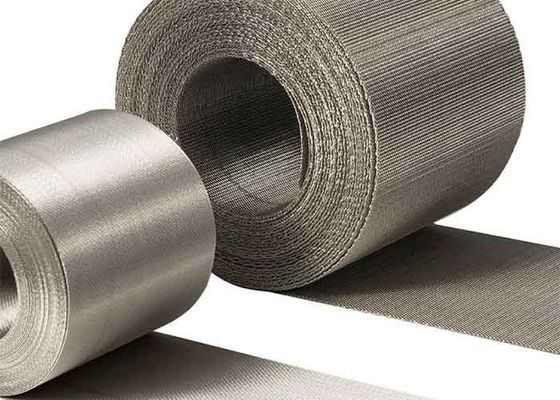

Mesh screen filter belts for plastic pelletizer is a kind of dutch weave mesh that is called because of his different warp wire diameter and mesh count. Reasonable collocation of wire and mesh can reach the filter.

General length is 10 meters long, width of 40 mm – 210 mm, mesh 40 yard to 350 yard, and the most up to 50 centimeters wide, customize special specifications can be processed.

Main Application:

• Plastic wire drawing machine,
• Stretch film machine,
• Coating machine filters,
• Plastic recycling filter,
• Molding machine filter,
• Polymer melt filtration.

Specification:

• Material: Stainless steel wire 304, 304L, 316, 316L.
• Weave type: Reverse dutch twill weave.
• Mesh: 72X15, 132X17, 152X24, 152X30, 260X40, 300X40.
• Roll width: 40 – 210mm, (Max width:50cm)
• Roll length: 10 – 20 m (Can be customized).

Woven mesh using in mesh screen filters:

Woven mesh material under supply: Stainless steel, aluminum alloy, titanium, tungsten, brass, copper, phosphor copper, molybdenum and others can custom made.
