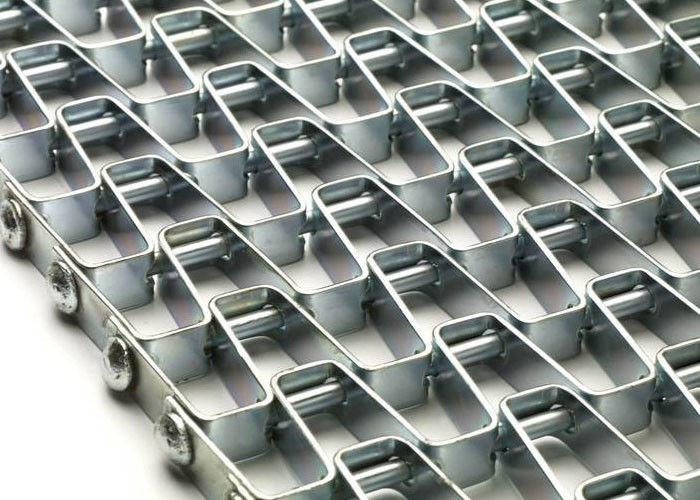

Stainless Steel 304 Flat Wire 3" Belt Width Flat Conveyor Belt

Stainless Steel 304 Flat Wire 3" Belt Width Flat Conveyor Belt
Stainless Steel 304 Flat Wire 3" Belt Width Flat Conveyor Belt

Large Image :  Stainless Steel 304 Flat Wire 3" Belt Width Flat Conveyor Belt

Product Details:
Place of Origin: China
Brand Name: Cittimesh
Model Number: Flat wire belt；Eye flex conveyor belt；Compound weave conveyor belt
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packing in cartons or wooden cases
Delivery Time: 7-10days
Payment Terms: L/C, T/T
Supply Ability: In abundant supply
Contact Now

Stainless Steel 304 Flat Wire 3" Belt Width Flat Conveyor Belt

Description
Product: Flat Conveyor Belt Material: Galvanized Low Carbon Steel C1015, High Carbon Steel C-1045, C1050, Stainless Steel T-304, T-306.
Type: Flat Wire Belt；Eye Flex Conveyor Belt；Compound Weave Conveyor Belt
Highlight:

304 Flat Wire Conveyor Belt

,

3” Flat Wire Conveyor Belt

,

Stainless Steel Flat Wire Conveyor Belt



CittiMesh can provide you various flat conveyor belts to meet all kinds of your needs





Flat conveyor belt product



There are three types of flat conveyor belts in CittiMesh: flat wire belt, eye flex conveyor belt and compound weave conveyor belt.

The high strength to weight ratio of the flat wire belt prevents it from deforming under heavy loads, and a very large opening area keeps air flowing. The side guards can be provided on your request, it can be used to control the height of the product and prevent it from falling due to excessive build-up.

Compound weave conveyor belt has tighter conveyor face that has been ideal for barbecues and small products.



Flat conveyor belt feature



  • High strength to weight ratio prevents belt from deforming under heavy loads.
  • Anti-slip, high temperature resistance.
  • Large opening area for excellent air circulation.
  • Low maintenance, easy to clean and install.
  • Durable with longer lifespan.



Flat conveyor belt specification



  • Material:Galvanized low carbon steel C1015, high carbon steel C-1045, C1050, stainless steel T-304, T-306.
  • Type

  • Flat wire belt
    • Mesh size (inch): 1 × 1, 1/2 × 1, 1/2 × 1/2, 3/4 × 1.
    • Belt width: 3"–240". Special width can be customized.
    • Flat strip
      • Standard (inch): 3/8 W × 0.046 T, round edge.
      • Radius (inch): 1/2 W × 0.062 T, round edge.
      • Heavy duty (inch): 1/2 W × 0.062 T, round edge.
    • Cross rod
      • Standard: 11 & 12 gauge.
      • Radius: 6 gauge.
      • Heavy duty: 6 gauge.
    • Edge style: clinched edge, welded edge.
    • Belt speed: from less than 1 m/min to 25 m/min.
    • Temperature range: -30 °C to 400 °C.
    • Accessories: flight clip, lane divider, edge guard or pin up attachment.
  • Eye flex conveyor belt: standard, under welded wire spacing, ring as spacer, spring as spacer
    • Opening area: 20%–90%.
    • Belt gap: 0.08"–1.97".
    • Diameter of wire link: 0.06" with light and fine structures to 0.16" for heavy load applications.
    • Width: 1.97"–275.6".
    • Length: according to your requirements.
  • Compound weave conveyor belt
    • Coil wire diameter (inch): 0.04, 0.05, 0.06, 0.08.
    • Coil pitch (inch): 0.17–0.44.
    • Cross rod diameter (inch): 0.05, 0.06, 0.08, 0.1.
    • Cross rod pitch (inch): 0.09–0.2.
    • Width: up to 118.11".
    • Edge finish: welded edge, chain edge.


Flat conveyor belt application



  • Food baking, cooling and freezing.
  • Chemical industry.
  • Sieving.
  • Sorting.
  • Washing.
  • Drying.
  • Dewatering.
  • Drainage.
  • Annealing.
  • Cooking.
  • Heating.
  • Cladding.
  • Blanching.
  • Washing.
  • Frying.
  • Loading.
  • Elevating.
  • Transporting.



Stainless Steel 304 Flat Wire 3" Belt Width Flat Conveyor Belt 0



flat-wire-belt-pastry



Stainless Steel 304 Flat Wire 3" Belt Width Flat Conveyor Belt 1



Flat-wire-belt-bread



Stainless Steel 304 Flat Wire 3" Belt Width Flat Conveyor Belt 2



eye-flex-conveyor-belt-meat
